Network charts tutorial
Intro
Use the chickenstats library to scrape play-by-play data, aggregate statistics,
and generate network graphs for forward line combinations
Parts of this tutorial are optional and will be clearly marked as such. For help, or any questions, please don't hesitate to reach out to chicken@chickenandstats.com or @chickenandstats.com on Blue Sky.
Housekeeping
Import dependencies
Import the dependencies we'll need for the guide
import datetime as dt
from pathlib import Path
import matplotlib.pyplot as plt
import networkx
import networkx as nx
import numpy as np
import pandas as pd
import seaborn as sns
import chickenstats.utilities # This imports the chickenstats matplotlib style below
from chickenstats.chicken_nhl import Scraper, Season
from chickenstats.chicken_nhl.info import NHL_COLORS
from chickenstats.chicken_nhl.helpers import charts_directory
Pandas options
Sets different pandas options. This cell is optional
Folder structure
Chickenstats matplotlib style
chickenstats.utilities includes a custom style package - this activates it. This cell is also optional
Scrape data
Schedule, standings, and team names
Scrape the schedule and standings using the Season object. Then, create some name dictionaries for convenience later
schedule = season.schedule(disable_progress_bar=True) # Progress bar renders poorly in ipynb to md conversions
team_names = standings.sort_values(by="team_name").team_name.str.upper().tolist()
team_codes = standings.sort_values(by="team_name").team.str.upper().tolist()
team_names_dict = dict(zip(team_codes, team_names, strict=False)) # These are helpful for later
Game IDs
Select the team and games to plot. The default are all of the most recent season's games for the Nashville Predators :). Feel free to change for your chosen team code
conditions = np.logical_and(
np.logical_or(schedule.home_team == team, schedule.away_team == team), schedule.game_state == "OFF"
)
game_ids = schedule.loc[conditions].game_id.tolist()
latest_date = schedule.loc[conditions].game_date.max()
Play-by-play
Scrape the play-by-play data for the chosen game ID. First instantiate the Scraper object,
then call the play_by_play attribute
Stats
Aggregate individual statistics after scraping the play-by-play data
Plotting network data
Helper functions
Create and draw the network graphs in a convenient plotting function
def create_network_graph(data: pd.DataFrame, team: str, strengths: list) -> nx.Graph:
"""Creates a network for a given team and strength state, with time-on-ice as the weight.
Parameters:
data (pd.DataFrame):
Pandas dataframe of individual statistics, aggregated from play-by-play
data scraped with chickenstats package
team (str):
Three-letter team code which determines the coloring used for the chart
strengths (list):
List of strength states to aggregate for data
"""
conds = np.logical_and.reduce(
[
data.team == team,
data.strength_state.isin(strengths),
data.position.isin(["C", "L", "R", "L/R", "L/C", "R/L", "R/C", "C/L", "C/R"]),
]
)
df = data.loc[conds].reset_index(drop=True)
players = df.player.sort_values().unique().tolist()
concat_list = [df.player.copy(deep=True)]
for player in players:
conds = [
df.player == player,
np.logical_and(
df.player != player, np.logical_or(df.forwards.str.contains(player), df.defense.str.contains(player))
),
]
values = [np.nan, df.toi]
player_series = pd.Series(np.select(conds, values, 0), name=player)
concat_list.append(player_series)
df = pd.concat(concat_list, axis=1).groupby("player", as_index=False).sum()
df = df.set_index("player", drop=True)
df = (df - df.min().min()) / (df.max().max() - df.min().min()) * 75
df = df.reset_index()
df = df.melt(
id_vars=["player"], value_vars=[x for x in df.columns if x != "player"], var_name="target", value_name="weight"
).rename(columns={"player": "source"})
network_graph = nx.from_pandas_edgelist(df, edge_attr=True)
return network_graph
# Helper function to draw any graph
def draw_graph(g: nx.Graph, team: str, edge_options: dict, edge_labels: dict | None = None) -> plt.Figure:
"""Draws the graph G with the specified node and edge options.
Parameters:
g (networkx.Graph):
The graph to be drawn.
team (str):
Team code for colors.
edge_options (dict):
Options for drawing edges.
edge_labels (dict, optional):
Labels for the edges. Defaults to None.
"""
fig, ax = plt.subplots(dpi=650, figsize=(8, 5))
# Global color properties
node_options = {
"node_color": NHL_COLORS[team]["GOAL"],
"node_size": 1000,
"edgecolors": NHL_COLORS[team]["SHOT"],
"linewidths": 2,
}
# Define the layout of the graph
pos = nx.spring_layout(g, iterations=10, seed=20000)
# Draw the nodes with the specified options
nx.draw_networkx_nodes(g, pos, **node_options)
# Draw the node labels with specified font properties
nx.draw_networkx_labels(
g,
pos,
font_size=8,
font_color=NHL_COLORS[team]["SHOT"],
font_weight="bold",
bbox={"alpha": 0.5, "color": "white"},
)
# Draw the edges with the specified options
nx.draw_networkx_edges(g, pos, **edge_options)
# Draw edge labels if they are provided
if edge_labels:
nx.draw_networkx_edge_labels(
g,
pos,
edge_labels=edge_labels,
connectionstyle="arc3, rad=0.3",
font_size=12,
font_color=NHL_COLORS[team]["MISS"],
bbox={"alpha": 0.5, "color": "white"},
)
sns.despine(left=True, bottom=True)
return fig
def plot_network(stats: pd.DataFrame, team: str, strengths: list, edge_labels=None):
"""This function plots and saves the actual matplotlib figures.
Parameters:
stats (pd.DataFrame):
Pandas dataframe of individual statistics, aggregated from play-by-play
data scraped with chickenstats package
team (str):
Three-letter team code which determines the coloring used for the chart
strengths (list):
List of strength states to plot and pass to the network graph function
edge_labels (dict, optional):
Labels for the edges
"""
g = create_network_graph(data=stats, team=team, strengths=strengths)
weights = nx.get_edge_attributes(g, "weight")
edge_options = {
"edge_color": NHL_COLORS[team]["SHOT"],
#'width': 2.5,
"alpha": 0.7,
"width": [weights[edge] / 10 for edge in g.edges()],
}
fig = draw_graph(g=g, edge_options=edge_options, team=team, edge_labels=edge_labels)
fig_suptitle = f"{team_names_dict[team].title()} forward line combinations at 5v5"
fig.suptitle(fig_suptitle, x=0.01, y=1.08, fontsize=11, fontweight="bold", horizontalalignment="left")
subtitle = f"Width of connecting line indicates time-on-ice | 2024-25 season, as of {latest_date}"
fig.text(s=subtitle, x=0.01, y=1.02, fontsize=10, horizontalalignment="left")
# Attribution
attribution = "Data & xG model @chickenandstats.com | Viz @chickenandstats.com"
fig.text(s=attribution, x=0.99, y=-0.05, fontsize=8, horizontalalignment="right", style="italic")
# Save figure
save_path = Path(f"./charts/{team.lower()}_network_graph.png")
fig.savefig(save_path, transparent=False, bbox_inches="tight")
Plotting the data

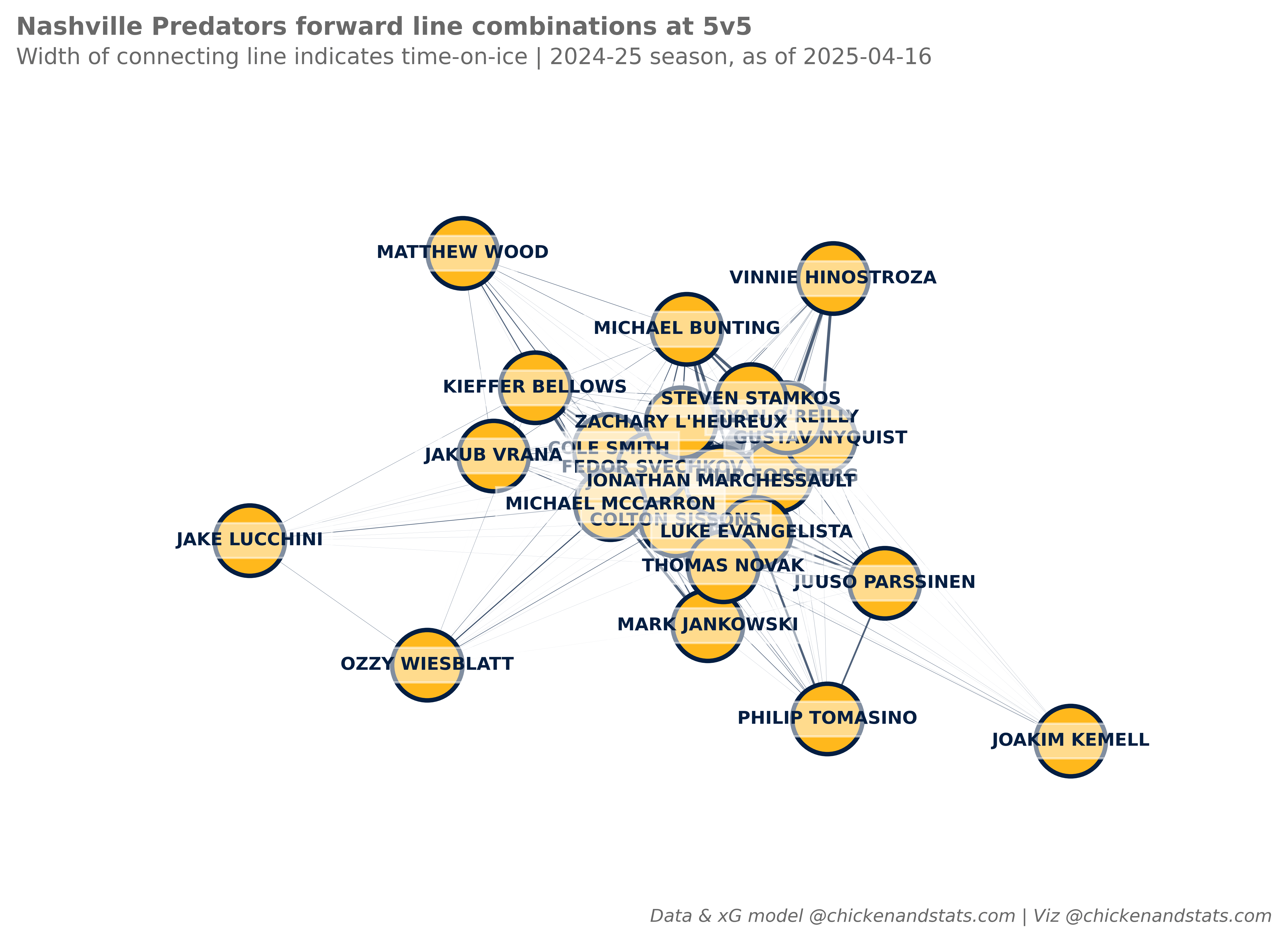

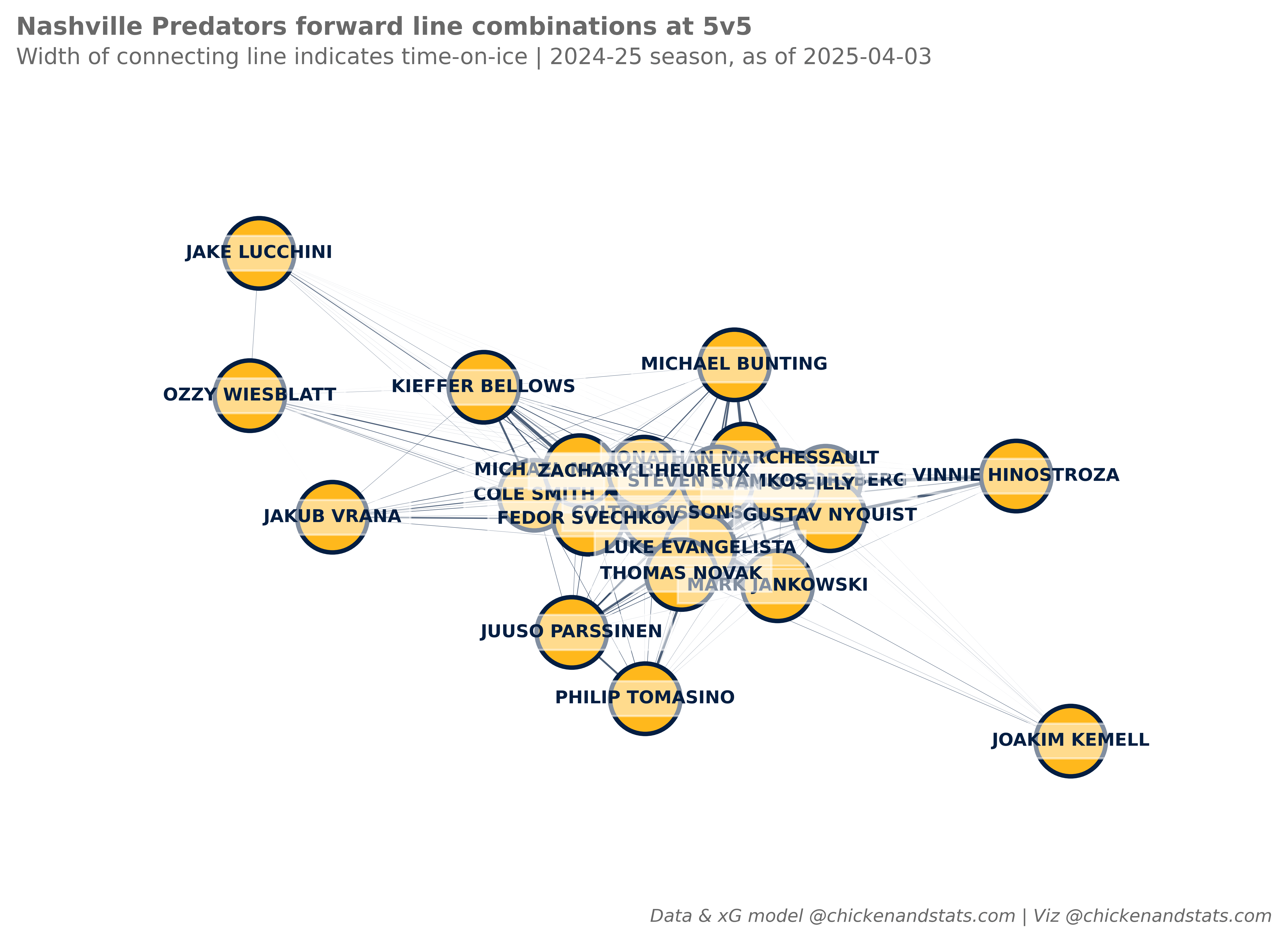

NSH network chart
Plot the network chart with the cell below
