Lollipop charts tutorial
Intro

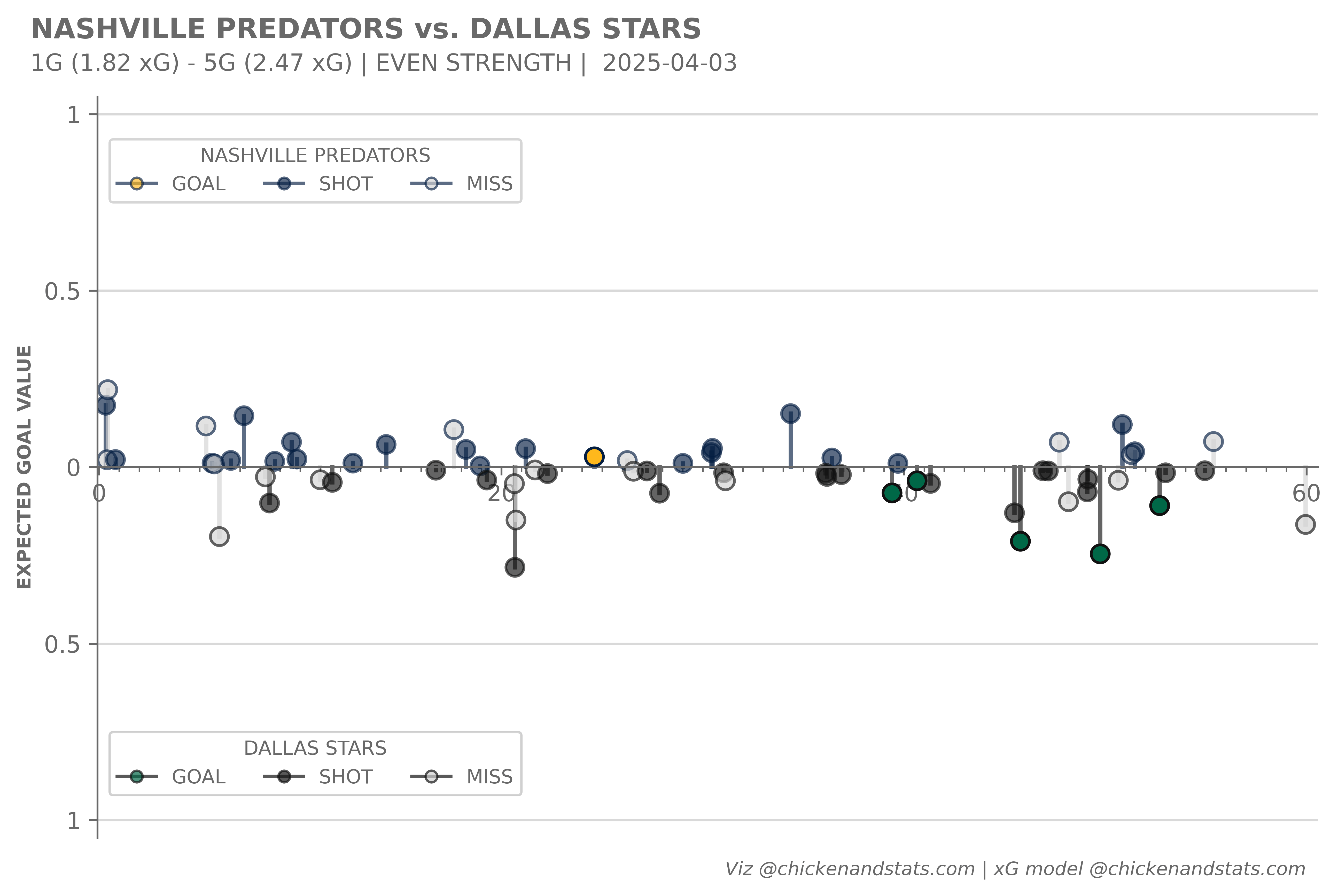

Use the chickenstats library to scrape play-by-play data and plot shot events as a lollipop chart,
with the length of the stem indicating the predicted goal value.
Parts of this tutorial are optional and will be clearly marked as such. For help, or any questions, please don't hesitate to reach out to chicken@chickenandstats.com or @chickenandstats.com on Blue Sky.
Housekeeping
Import dependencies
Import the dependencies we'll need for the guide
import matplotlib as mpl
import matplotlib.pyplot as plt
import matplotlib.ticker as ticker
import numpy as np
import pandas as pd
from matplotlib.lines import Line2D
import chickenstats.utilities # This imports the chickenstats matplotlib style below
from chickenstats.chicken_nhl import Scraper, Season
from chickenstats.chicken_nhl.info import NHL_COLORS
from chickenstats.chicken_nhl.helpers import charts_directory
Pandas options
Sets different pandas options. This cell is optional
Folder structure
Chickenstats matplotlib style
chickenstats.utilities includes a custom style package - this activates it. This cell is also optional
Scrape data
Schedule, standings, and team names
Scrape the schedule and standings using the Season object. Then, create some name dictionaries for convenience later
schedule = season.schedule(disable_progress_bar=True) # Progress bar renders poorly in ipynb to md conversions
team_names = standings.sort_values(by="team_name").team_name.str.upper().tolist()
team_codes = standings.sort_values(by="team_name").team.str.upper().tolist()
team_names_dict = dict(zip(team_codes, team_names, strict=False)) # These are helpful for later
Game IDs
Select the team and games to plot. The default is the most recent game for the Nashville Predators :). Feel free to change for your chosen team code
team = "NSH"
conds = np.logical_and(
schedule.game_state == "OFF", np.logical_or(schedule.home_team == team, schedule.away_team == team)
)
game_ids = schedule.loc[conds].game_id.unique().tolist()
game_id = game_ids[-1]
Play-by-play
Scrape the play-by-play data for the chosen game ID. First instantiate the Scraper object,
then call the play_by_play attribute
Plotting the lollipop chart
Helper functions
This helper function formats numbers for the x-axis
def numfmt(x: int, pos) -> str:
"""Function to convert the game-time values as minutes, then format them for the x-axis.
Used within the matplotlib FuncFormatter.
Parameters:
x (int):
The game time, in seconds, to convert.
pos:
Required by the FuncFormatter
"""
s = str(int(x / 60))
return s
Plotting function
This function plots the actual lollipop chart. You can select the strength states, while the team parameter determines which team is in the upper portion of the chart.
Strength state options include: * 5v5 * even strength * special teams (i.e., powerplay and shorthanded) * empty net * all strength states
def plot_lollipop(data: pd.DataFrame, ax: plt.axes, team: str | None = None, strengths: str | None = None) -> plt.axes:
"""Function to plot the lollipop chart, with the given in the upper portion.
Parameters:
data (pd.DataFrame):
Play-by-play data for a single game scraped using the chickenstats package.
ax (plt.axes):
The axes on which to plot the lollipop chart.
team (str):
Three-letter team code to determine which team is in the upper portion of the chart.
Default is the home team
strengths (str):
The strength states to include in the chart. Default is 5v5
"""
strengths_dict = {
"5v5": {"name": "5v5", "list": ["5v5"]},
"even": {"name": "even_strength", "list": ["5v5", "4v4", "3v3"]},
"special": {"name": "special_teams", "list": ["5v4", "5v3", "4v5", "3v5"]},
"empty": {"name": "empty_net", "list": ["Ev5", "Ev4", "Ev3", "5vE", "4vE", "3vE"]},
"all": {"name": "all", "list": ["5v5", "4v4", "3v3", "5v4", "5v3", "4v5", "3v5"]},
}
if not strengths:
strengths = "5v5"
strengths = strengths_dict[strengths]
strengths_list = strengths["list"]
conds = data.strength_state.isin(strengths_list)
df = data.loc[conds].reset_index(drop=True)
if not team:
team = df.home_team.iloc[0]
ax.set_ylim(-1.05, 1.05)
# ax.axhline(y = 0, lw=1, alpha=.8)
ax.axhline(y=0.5, lw=1, zorder=-1, alpha=0.25)
ax.axhline(y=1, lw=1, zorder=-1, alpha=0.25)
ax.axhline(y=-0.5, lw=1, zorder=-1, alpha=0.25)
ax.axhline(y=-1, lw=1, zorder=-1, alpha=0.25)
ax.set_yticks([1, 0.5, 0, -0.5, -1], labels=[1, 0.5, 0, 0.5, 1])
max_game_seconds = data.game_seconds.max()
ax.set_xlim(-5, max_game_seconds + 35)
ax.spines.bottom.set_position("zero")
ax.xaxis.set_major_locator(ticker.MultipleLocator(1200))
xfmt = ticker.FuncFormatter(numfmt)
ax.xaxis.set_major_formatter(xfmt)
ax.xaxis.set_minor_locator(ticker.MultipleLocator(60))
ax.set_ylabel("EXPECTED GOAL VALUE", fontsize=8)
events = ["GOAL", "SHOT", "MISS"]
conds = np.logical_and(df.event_team == team, df.event.isin(events))
plot_data = df.loc[conds]
team_post = 0
for _idx, play in plot_data.iterrows():
colors = NHL_COLORS[play.event_team]
marker = "o"
facecolor = colors[play.event]
edgecolor = colors[play.event]
if play.event == "GOAL":
z_order = 3
alpha = 1
hatch = ""
edgecolor = colors["SHOT"]
else:
hatch = ""
alpha = 0.65
z_order = 2
if play.event == "MISS":
if "POST" in play.description:
team_post += 1
hatch = "////////"
edgecolor = colors["SHOT"]
ax.scatter(
[play.game_seconds],
[play.pred_goal],
marker=marker,
s=60,
color=facecolor,
lw=1.15,
ec=edgecolor,
zorder=z_order,
hatch=hatch,
alpha=alpha,
)
if play.event == "MISS":
edgecolor = colors["MISS"]
ax.plot(
[play.game_seconds, play.game_seconds], [0, play.pred_goal], lw=1.85, color=edgecolor, zorder=0, alpha=0.65
)
conds = np.logical_and(df.event_team != team, df.event.isin(events))
plot_data = df.loc[conds]
not_team_post = 0
for _idx, play in plot_data.iterrows():
colors = NHL_COLORS[play.event_team]
marker = "o"
facecolor = colors[play.event]
edgecolor = colors[play.event]
if play.event == "GOAL":
z_order = 3
alpha = 1
edgecolor = colors["SHOT"]
else:
alpha = 0.65
z_order = 2
if play.event == "MISS":
if "POST" in play.description:
hatch = "////////"
not_team_post += 1
edgecolor = colors["SHOT"]
ax.scatter(
[play.game_seconds],
[play.pred_goal * -1],
marker=marker,
s=60,
color=facecolor,
lw=1.15,
ec=edgecolor,
zorder=z_order,
alpha=alpha,
)
if play.event == "MISS":
edgecolor = colors["MISS"]
ax.plot(
[play.game_seconds, play.game_seconds],
[0, play.pred_goal * -1],
lw=1.85,
color=edgecolor,
zorder=0,
alpha=0.65,
)
not_team = df.loc[np.logical_and(df.event_team != team, pd.notnull(df.event_team))].event_team.iloc[0]
# legends
legend_handles = []
for event in ["GOAL", "SHOT", "MISS"]:
colors = NHL_COLORS[team]
linecolor = colors["SHOT"]
facecolor = colors[event]
legend_handle = Line2D(
[],
[],
color=linecolor,
markeredgecolor=linecolor,
markerfacecolor=facecolor,
marker=marker,
markersize=5,
label=event,
alpha=0.65,
)
legend_handles.append(legend_handle)
legend1 = ax.legend(
handles=legend_handles,
loc=(0.01, 0.8575),
ncols=len(legend_handles),
fontsize="small",
title=team_names_dict[team],
title_fontsize="small",
)
ax.add_artist(legend1)
legend_handles = []
for event in ["GOAL", "SHOT", "MISS"]:
colors = NHL_COLORS[not_team]
linecolor = colors["SHOT"]
facecolor = colors[event]
legend_handle = Line2D(
[],
[],
color=linecolor,
markeredgecolor=linecolor,
markerfacecolor=facecolor,
marker=marker,
markersize=5,
label=event,
alpha=0.65,
)
legend_handles.append(legend_handle)
legend2 = ax.legend(
handles=legend_handles,
loc=(0.01, 0.0575),
ncols=len(legend_handles),
fontsize="small",
title=team_names_dict[not_team],
title_fontsize="small",
)
ax.add_artist(legend2)
team_g = df.loc[df.event_team == team].goal.sum()
team_xg = df.loc[df.event_team == team].pred_goal.sum()
not_team_g = df.loc[df.event_team != team].goal.sum()
not_team_xg = df.loc[df.event_team != team].pred_goal.sum()
ax_title = f"{team_names_dict[team]} vs. {team_names_dict[not_team]}"
ax.set_title(ax_title, ha="left", x=-0.055, y=1.06)
strengths_name = strengths["name"].replace("_", " ").upper()
score_subtitle = f"{team_g}G ({round(team_xg, 2)} xG) - {not_team_g}G ({round(not_team_xg, 2)} xG)"
game_date = df.game_date.iloc[0]
ax_subtitle = f"{score_subtitle} | {strengths_name} | {game_date}"
ax.text(s=ax_subtitle, ha="left", x=-0.055, y=1.035, transform=ax.transAxes)
attribution = "Viz @chickenandstats.com | xG model @chickenandstats.com"
ax.text(s=attribution, ha="right", x=0.99, y=-0.05, transform=ax.transAxes, fontsize=8, fontstyle="italic")
return ax

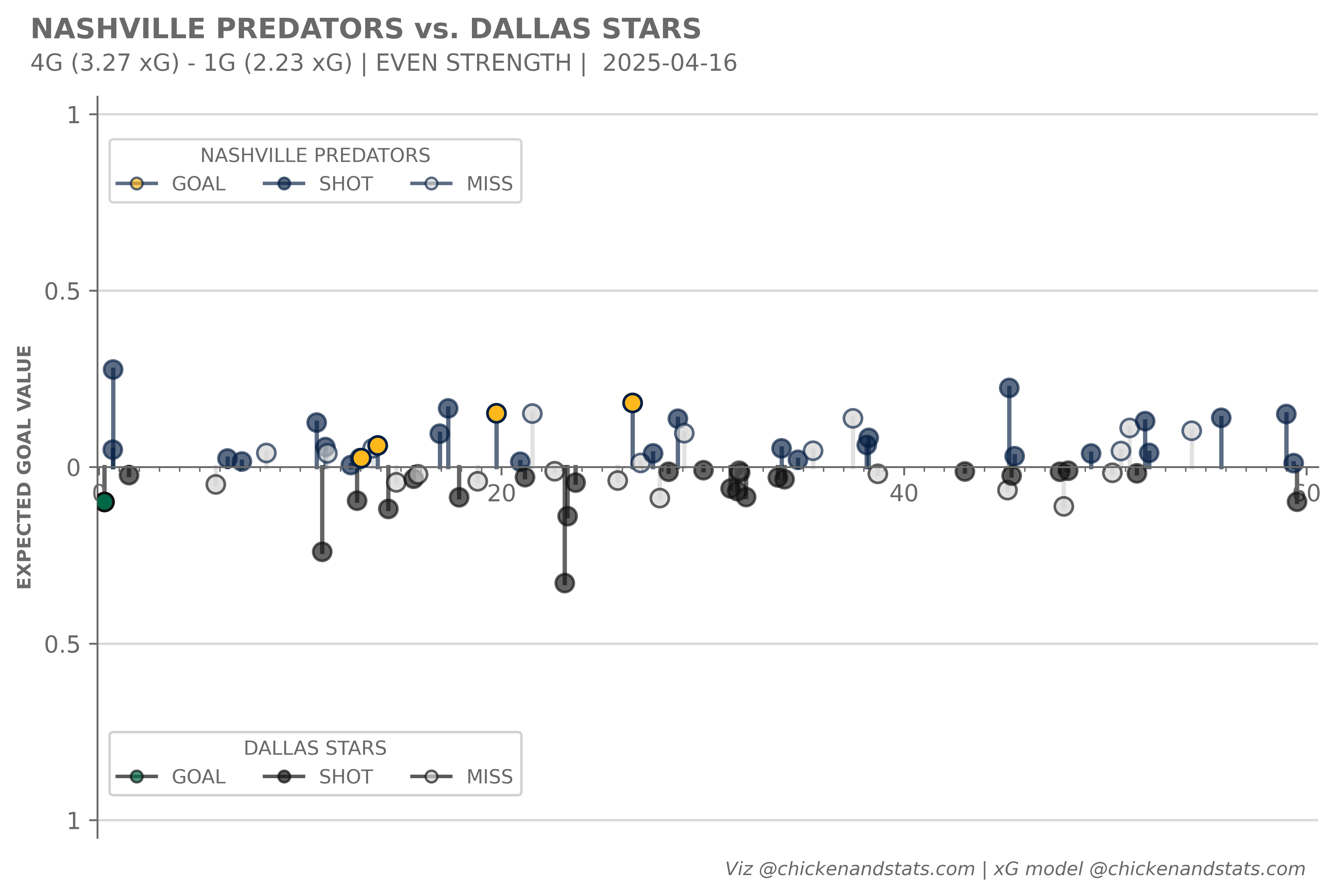

Plot the lollipop chart
Plot the lollipop for your chosen team and strength state below. To save the figure, ensure you have a charts folder in your working directory
fig, ax = plt.subplots(dpi=650, figsize=(8, 5))
fig.tight_layout()
ax = plot_lollipop(data=pbp, team=team, strengths="even", ax=ax)
fig.savefig(f"./charts/{game_id}.png", bbox_inches="tight", transparent=False)
